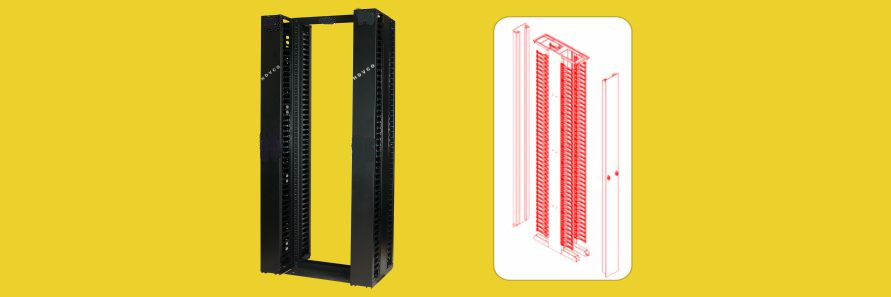

OPTRECA High Density Cable Organizer, Specially designed to meet the challenges of high density cable management due to increase on of Path panel per Rack and also introduction of angular jack panel.
Cable Organizer frame manufactured out of steel sheet punched, formed, welded and powder coated and Doors made of aluminum sheet punched formed and powder coated with highest quality standards to ensure highest quality product.
Standard configuration will be 6”, 8”, 12” & 15” with unique double hinge door on Front & Back associated Removable / Reusable fingers made of Poly carbonate material. Available in Front OR Front Back Variants.


• Composite construction basic frame-Steel powder coated and fingers made of Poly carbonate for high strength to carry large quantity cables
• Cable Spools and Slots in Centre supported Member for large quantity cable management
• Poly carbonate fingers assure no cable damage
• Finger can be removed very easily to suit site requirements
• Unique double hinge design door at front and back to open door from left to
right or right to left for easy cable management
• The Vertical Cable Organizer free standing on floor and bolted to open rack for better alignment and aesthetic looks

Part Code & Dimensions
Part CodeHeight (mm)Usable Height (u)Width (Inches)Depth (Inches)Description
OPTRECA-FB-062145450618″6 inch/ Front & Back
OPTRECA-FB-062145450818″8 inch/ Front & Back
OPTRECA-FB-062145451218″12 inch/ Front & Back
OPTRECA-FB-062145451518″15 inch/ Front & Back
OPTRECA-FB-062145450609″6 inch/Front
OPTRECA-FB-062145450809″8 inch/Front
OPTRECA-FB-062145451209″12 inch/Front
1U-44.45 mm
Note : Customized model also undertaken on request. Different color options with powder coating
